INA GIKR6-PB
Rod Ends
Rod end with internal thread, right hand thread, requiring maintenance, DIN ISO 12240-4. dimension series K, type F, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

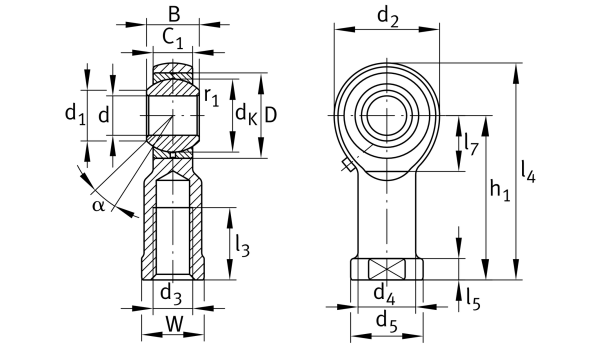

Main Dimensions & Performance Data
d
6 mm
Bore diameter bearing
D
16 mm
Outside diameter bearing
B
9 mm
Width inner ring
Cr
4,320 N
Basic dynamic load rating, radial
C0r
7,990 N
Basic static load rating, radial
Gr
0 - 0,035
Radial Clearance
≈m
28.527 g
Weight
