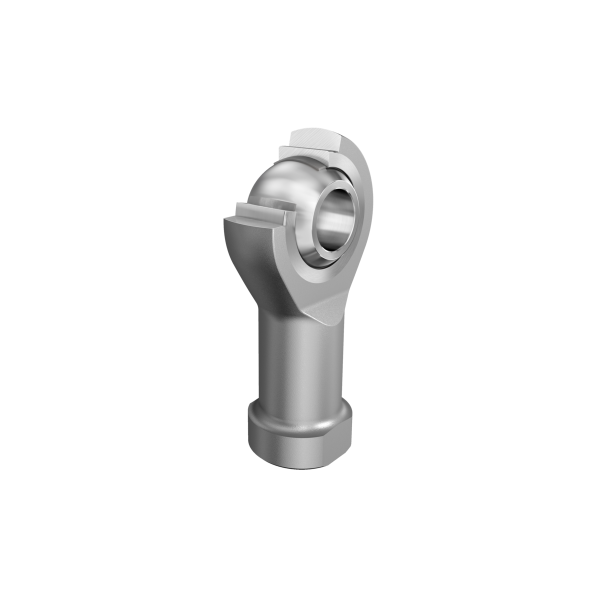

INA GIKSR25-PS
Rod Ends
Corrosion-resistant rod end, with internal thread, right hand thread, maintenance-free, sliding layer: PTFE film, DIN ISO 12240-4, dimension series K, type F, open design
(BRAND)：INA
(Availability)：In Stock

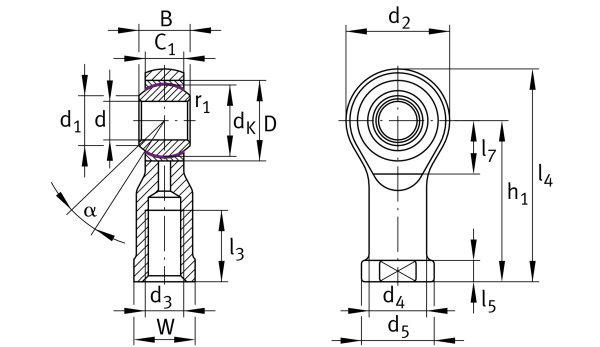

Main Dimensions & Performance Data
Cr
85,000 N
Basic dynamic load rating, radial
C0r
36,200 N
Basic static load rating, radial
d
25 mm
Bore diameter bearing
d2
61 mm
Outer eye diameter
l4
124.5 mm
Total length internal thread head
≈m
0.732 kg
Weight
Mounting dimensions
r1smin
0.3 mm
Edge Spacing
d1
29.6 mm
Outer flange diameter inner ring
