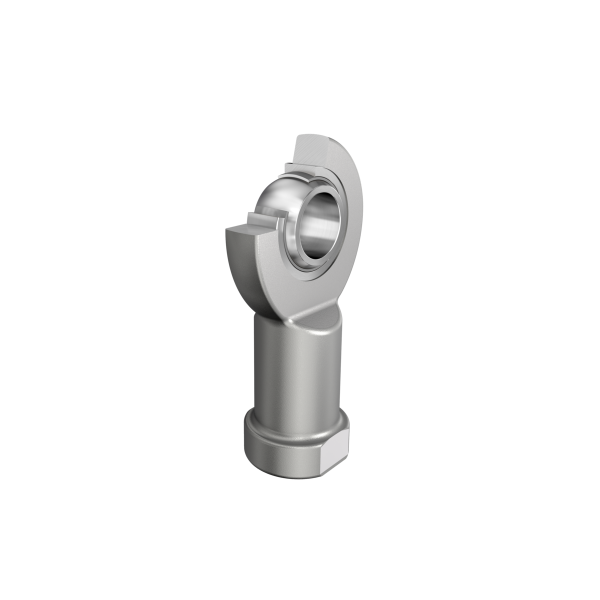

INA GIL6-UK
Rod Ends
Rod end with internal thread, maintenance-free, sliding layer: PTFE composite, DIN ISO 12240-4, dimension series E, type F, inner ring curved surface with hard chromium coating, open design, left hand thread
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

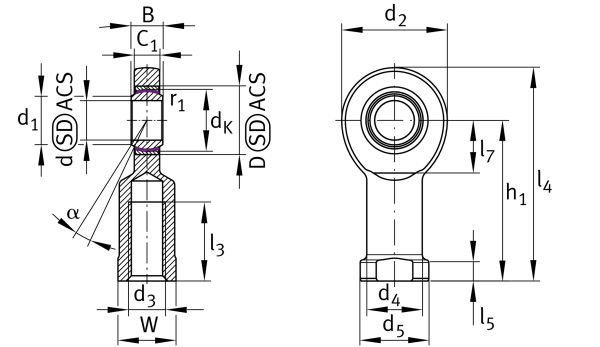

Main Dimensions & Performance Data
Cr
3,600 N
Basic dynamic load rating, radial
C0r
10,300 N
Basic static load rating, radial
d
6 mm
Bore diameter bearing
d2
21 mm
Outer eye diameter
l4
40.5 mm
Total length internal thread head
≈m
23 g
Weight
Mounting dimensions
r1smin
0.3 mm
Edge Spacing
d1
8 mm
Outer flange diameter inner ring
