INA GIR6-DO
Rod Ends
Rod end with internal thread, right hand thread, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-4, dimension series E, type F, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

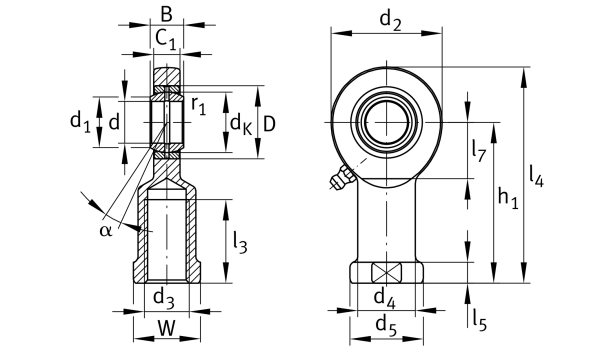

Main Dimensions & Performance Data
d
6 mm
Bore diameter bearing
D
14 mm
Outside diameter bearing
B
6 mm
Width inner ring
Cr
4,420 N
Basic dynamic load rating, radial
C0r
10,300 N
Basic static load rating, radial
Gr
0,023 - 0,068
Radial Clearance
≈m
23 g
Weight
