INA GU25-DO
Rod Ends
Rod end GU..-DO
(BRAND)：INA
(Availability)：In Stock

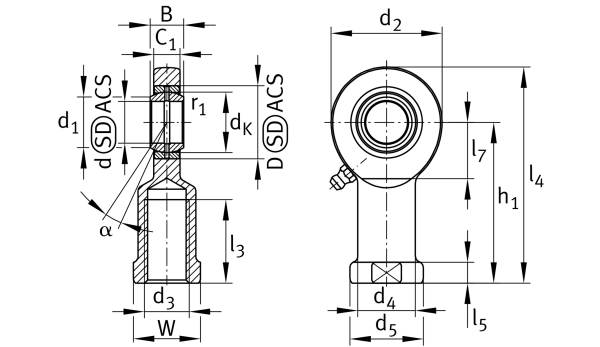

Main Dimensions & Performance Data
d
25 mm
Bore diameter bearing
D
42 mm
Outside diameter bearing
B
20 mm
Width inner ring,
Cr
62,800 N
Basic dynamic load rating, radial
C0r
88,300 N
Basic static load rating, radial
≈m
0.85 kg
Weight
