INA HFL0615-R
Drawn Cup Roller Clutch With Bearing Arrangement
Drawn Cup roller clutches HFL, with plain or rolling bearing arrangement, steel springs, knurled outer ring
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

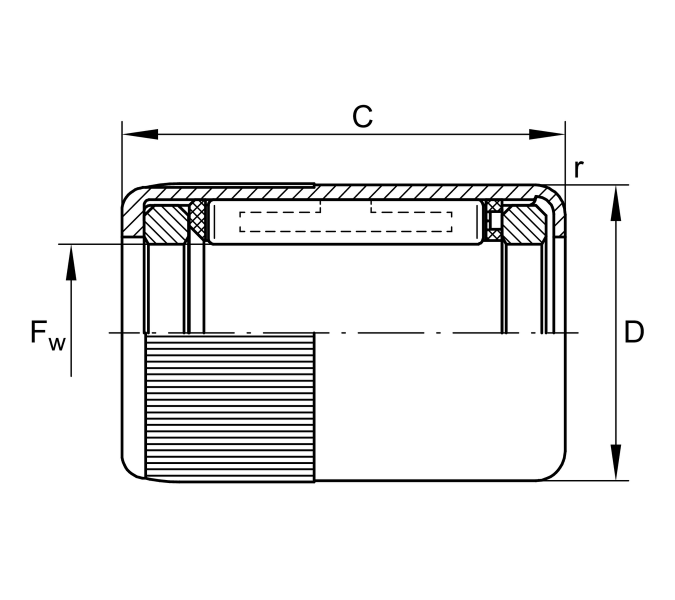

Main Dimensions & Performance Data
Fw
6 mm
Under roller diameter
D
10 mm
Outside diameter
C
15 mm
Width, outer ring
rmin
0.3 mm
Minimum chamfer dimension
(Fr*n)max
18,000 N/min
Limiting load
Fr max
110 N
Permissible radial load
nGA
13,000 1/min
Limiting speed for rotating outer ring
nGW
23,000 1/min
Limiting speed for rotating shaft
≈m
3.825 g
Weight
Mounting dimensions
Md per
0.5 Nm
Permissible torque
