INA HFL0822
Drawn Cup Roller Clutch With Bearing Arrangement
Drawn cup roller clutch HFL, with bearing
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

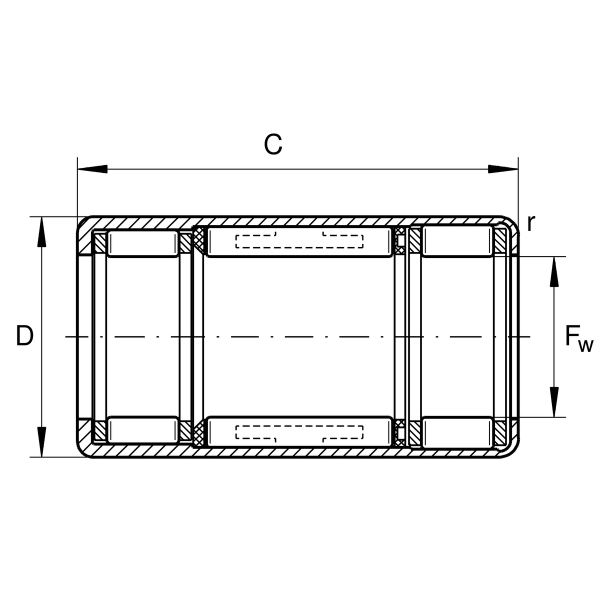

Main Dimensions & Performance Data
Fw
8 mm
Under roller diameter
D
12 mm
Outside diameter
C
22 mm
Width, outer ring
Cr
3,650 N
Basic dynamic load rating, radial
C0r
3,950 N
Basic static load rating, radial
rmin
0.3 mm
Minimum chamfer dimension
Cur
560 N
Fatigue load limit, radial
nGA
12,000 1/min
Limiting speed for rotating outer ring
nGW
17,000 1/min
Limiting speed for rotating shaft
≈m
6.325 g
Weight
Mounting dimensions
Md per
3.15 Nm
Permissible torque
