INA HFLZ101416-L564
Drawn Cup Roller Clutch With Bearing Arrangement
Drawn cup roller clutch HFLZ, with bearing
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

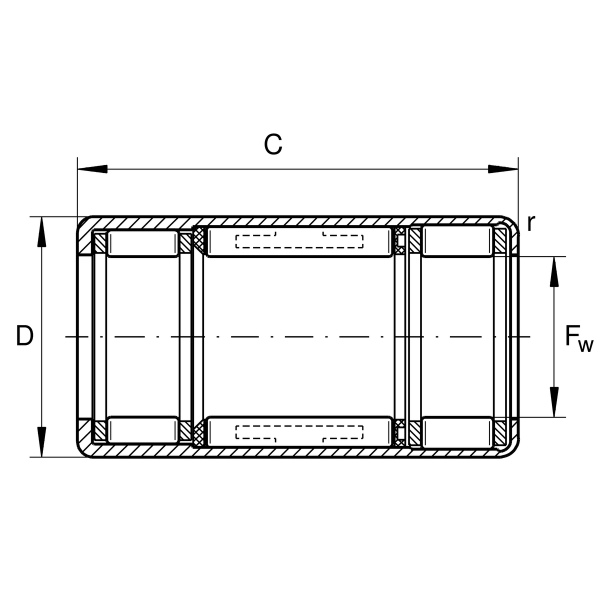

Main Dimensions & Performance Data
Fw
15.875 mm
Under roller diameter
D
22.225 mm
Outside diameter
C
25.4 mm
Width, outer ring
Cr
7,400 N
Basic dynamic load rating, radial
C0r
8,500 N
Basic static load rating, radial
rmin
0.8 mm
Minimum chamfer dimension
Cur
1,250 N
Fatigue load limit, radial
nGA
5,000 1/min
Limiting speed for rotating outer ring
nGW
8,500 1/min
Limiting speed for rotating shaft
≈m
22.77 g
Weight
Mounting dimensions
Md per
19 Nm
Permissible torque
