INA HFL1022
Drawn Cup Roller Clutch With Bearing Arrangement
Drawn cup roller clutch HFL, with bearing
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

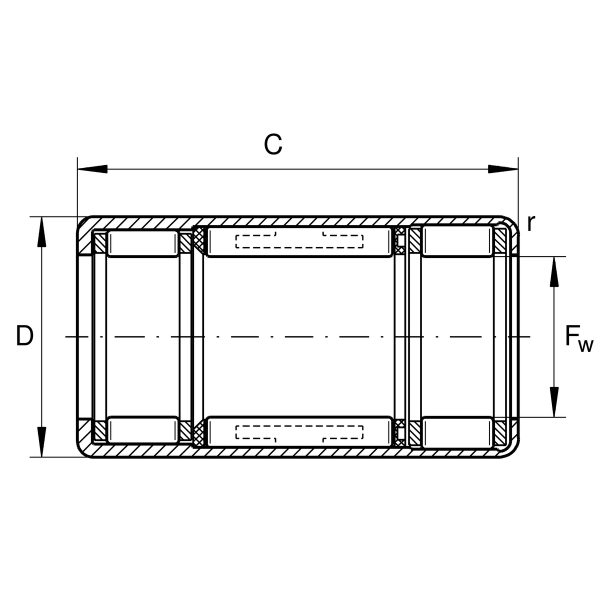

Main Dimensions & Performance Data
Fw
10 mm
Under roller diameter
D
14 mm
Outside diameter
C
22 mm
Width, outer ring
Cr
3,950 N
Basic dynamic load rating, radial
C0r
4,500 N
Basic static load rating, radial
rmin
0.3 mm
Minimum chamfer dimension
Cur
640 N
Fatigue load limit, radial
nGA
11,000 1/min
Limiting speed for rotating outer ring
nGW
14,000 1/min
Limiting speed for rotating shaft
≈m
7.4 g
Weight
Mounting dimensions
Md per
5.3 Nm
Permissible torque
