INA K81117-TV
Axial-Cylindrical Roller Bearings
Axial cylindrical roller and cage assembly K811, single direction, suitable for combination with axial bearing washers
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

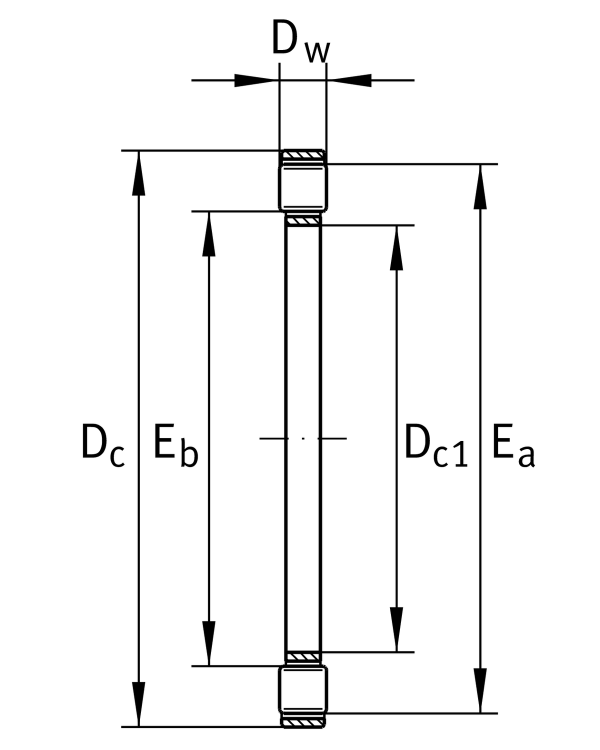

Main Dimensions & Performance Data
Dc1
85 mm
Bore diameter cage
Dc
110 mm
Cage outer diameter
Dw
7.5 mm
Rolling element diameter
Ca
112,000 N
Basic dynamic load rating, axial
C0a
385,000 N
Basic static load rating, axial
Cua
39,500 N
Fatigue load limit, axial
CG
2,950 1/min
Limiting speed
nϑr
1,070 1/min
Reference speed
≈m
98 g
Weight

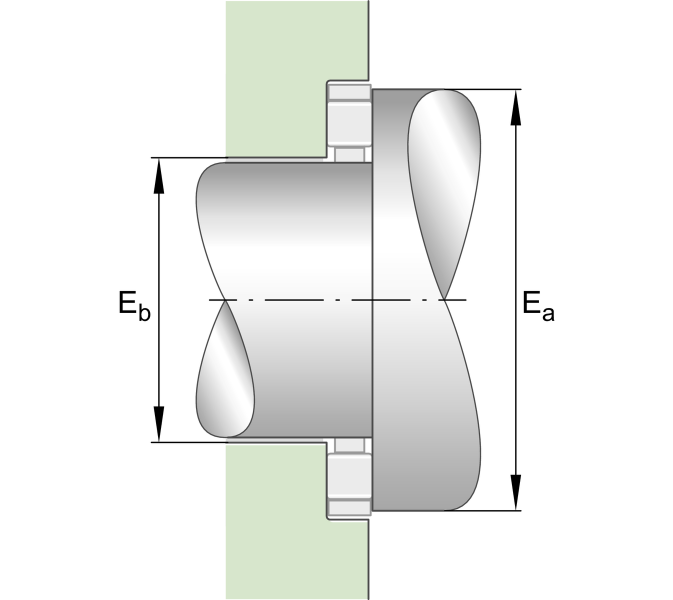

Mounting dimensions
Eb
87 mm
Raceway dimension
Ea
108 mm
Raceway dimension
