INA K81118-TV
Axial-Cylindrical Roller Bearings
Axial cylindrical roller and cage assembly K811, single direction, suitable for combination with axial bearing washers
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

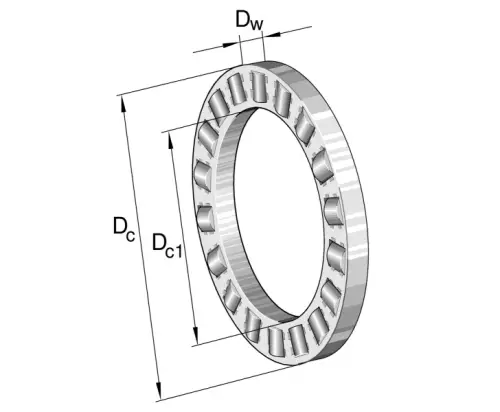

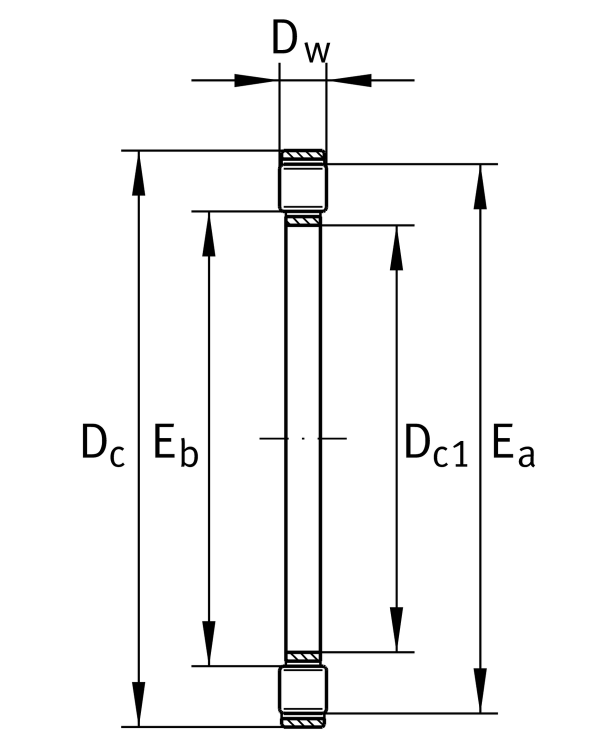

Main Dimensions & Performance Data
Dc1
90 mm
Bore diameter cage
Dc
120 mm
Cage outer diameter
Dw
9 mm
Rolling element diameter
Ca
141,000 N
Basic dynamic load rating, axial
C0a
465,000 N
Basic static load rating, axial
Cua
41,000 N
Fatigue load limit, axial
CG
2,750 1/min
Limiting speed
nϑr
1,070 1/min
Reference speed
≈m
0.144 kg
Weight

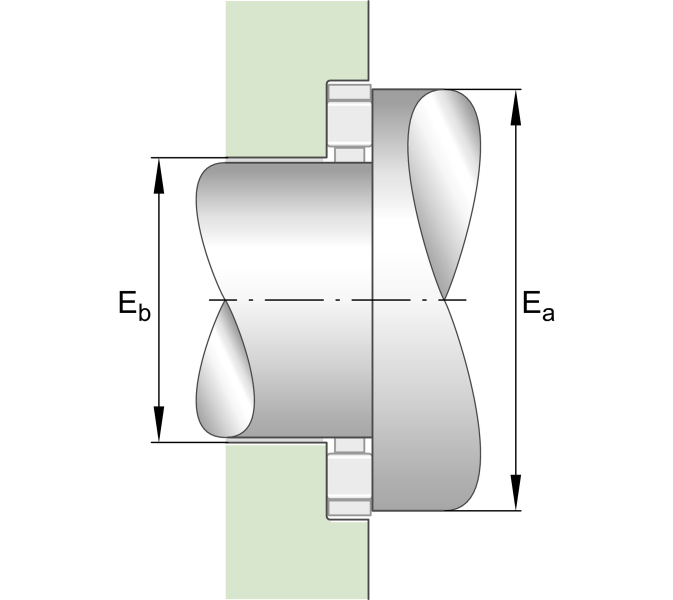

Mounting dimensions
Eb
93 mm
Raceway dimension
Ea
117 mm
Raceway dimension
