INA K81126-TV
Axial-Cylindrical Roller Bearings
Axial cylindrical roller and cage assembly K811, single direction, suitable for combination with axial bearing washers
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

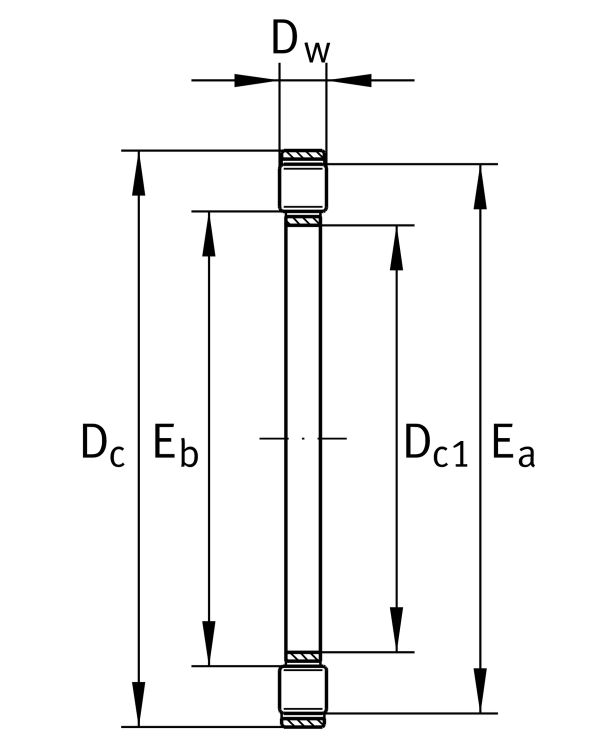

Main Dimensions & Performance Data
Dc1
130 mm
Bore diameter cage
Dc
170 mm
Cage outer diameter
Dw
12 mm
Rolling element diameter
Ca
250,000 N
Basic dynamic load rating, axial
C0a
900,000 N
Basic static load rating, axial
Cua
80,000 N
Fatigue load limit, axial
CG
1,920 1/min
Limiting speed
nϑr
760 1/min
Reference speed
≈m
0.368 kg
Weight

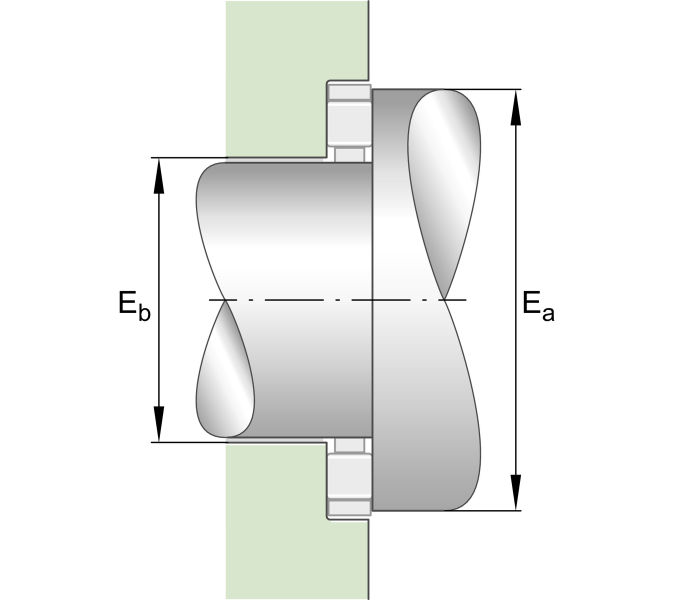

Mounting dimensions
Eb
135 mm
Raceway dimension
Ea
165 mm
Raceway dimension
