INA LR5208-X-2Z-TVH-XL
Track Rollers
Track roller LR..-2Z-TVH-XL, two-row, no plastic tyre
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

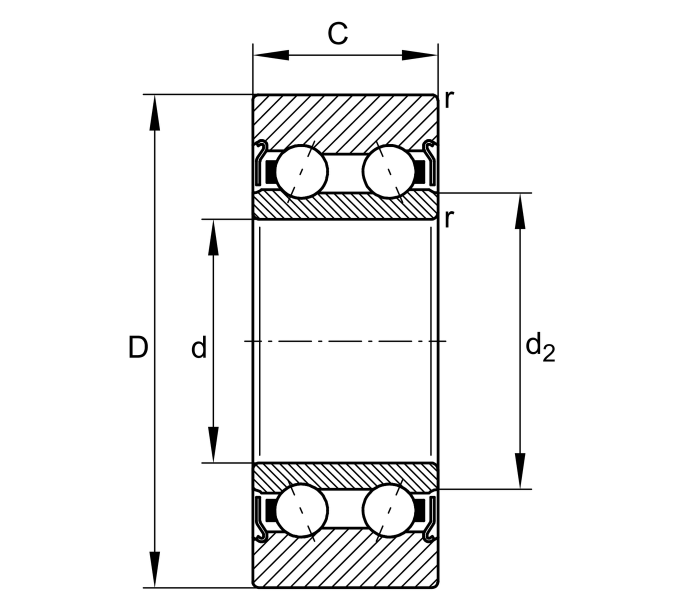

Main Dimensions & Performance Data
D
85 mm
Outside diameter
d
40 mm
Bore diameter
C
30.2 mm
Height
Cr w
36,500 N
Basic dynamic load rating, radial
C0r w
31,000 N
Basic static load rating, radial
Cur w
1,640 N
Fatigue load limit, radial
nD G
4,100 1/min
Speed on permanent grease lubrication
Fr per
16,300 N
Permissible dynamic load outer ring, radial
≈m
0.75 kg
Weight
