INA LR5308-2HRS-TVH-XL
Track Rollers
Track rollers LR50, double row, sealed on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

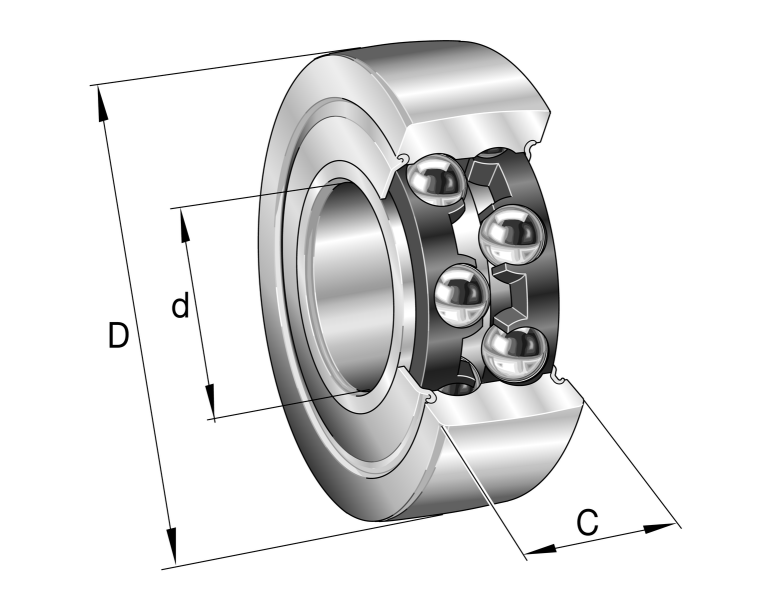

Main Dimensions & Performance Data
D
100 mm
Outside diameter
d
40 mm
Bore diameter
C
36.5 mm
Height
Cr w
54,000 N
Basic dynamic load rating, radial
C0r w
46,000 N
Basic static load rating, radial
Cur w
2,380 N
Fatigue load limit, radial
nD G
2,700 1/min
Speed on permanent grease lubrication
Fr per
35,500 N
Permissible dynamic load outer ring, radial
≈m
1.39 kg
Weight
