INA LS6085
Axial Bearing Washers
Bearing washers, suitable for AXK and K811
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

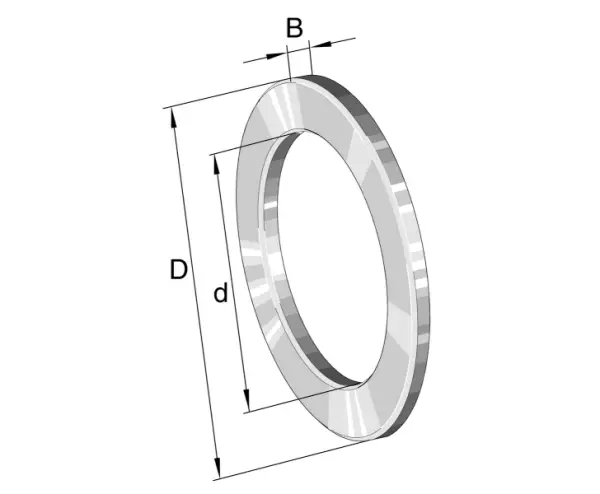

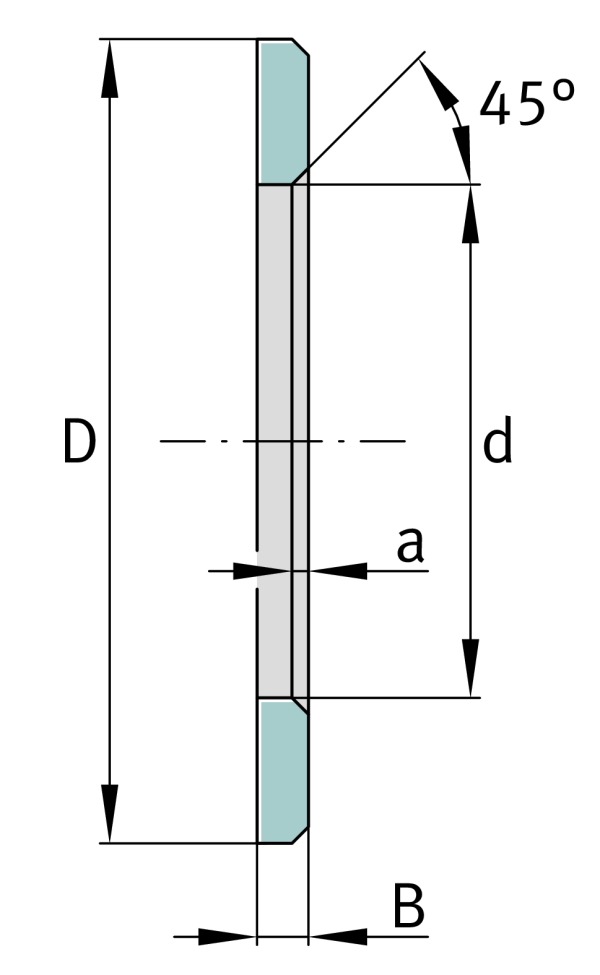

Main Dimensions & Performance Data
d
60 mm
Bore diameter track washer
D
85 mm
Outside diameter track washer
B
4.75 mm
Width
45 °
Chamfer Angle
amin
1.5 mm
Chamfer width
≈m
0.097 kg
Weight
