INA LS6590
Axial Bearing Washers
Bearing washers, suitable for AXK and K811
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

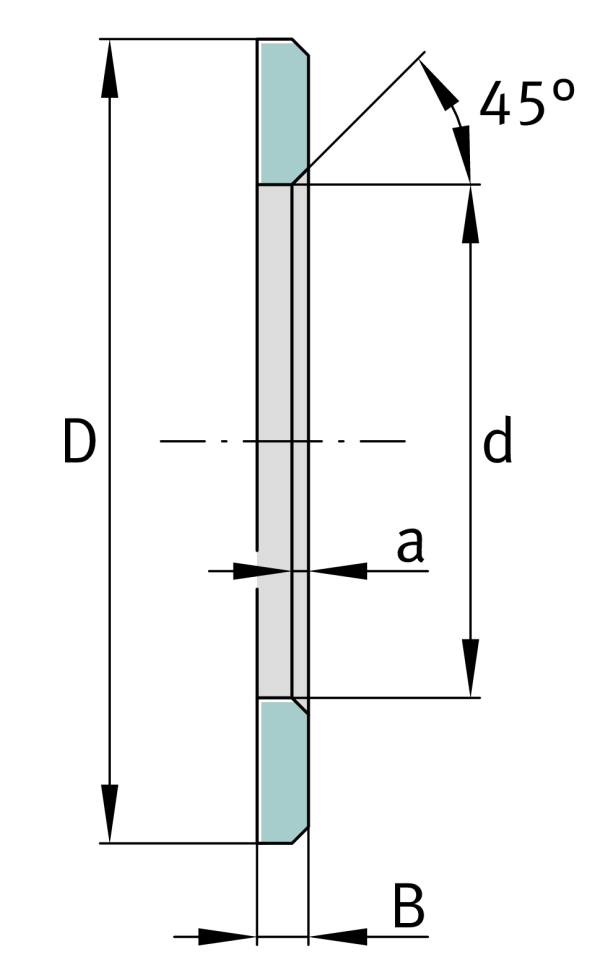

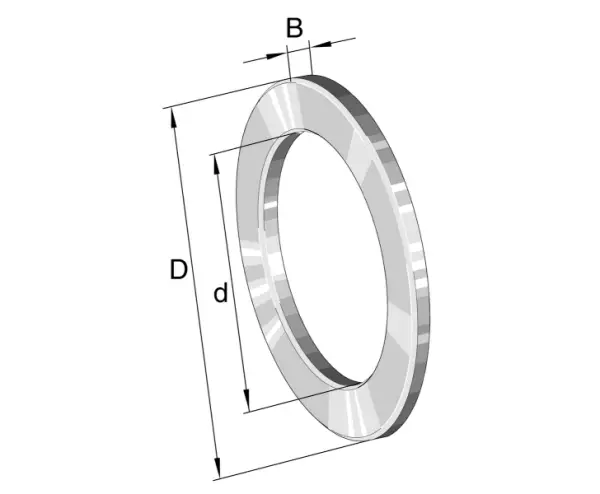

Main Dimensions & Performance Data
d
65 mm
Bore diameter track washer
D
90 mm
Outside diameter track washer
B
5.25 mm
Width
45 °
Chamfer Angle
amin
1.5 mm
Chamfer width
≈m
115 g
Weight
