INA NA2208-2RSR
Yoke Type Track Rollers
Yoke type track rollers NA22..-2RSR, with cage, without axial guidance of the outer ring, lip seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

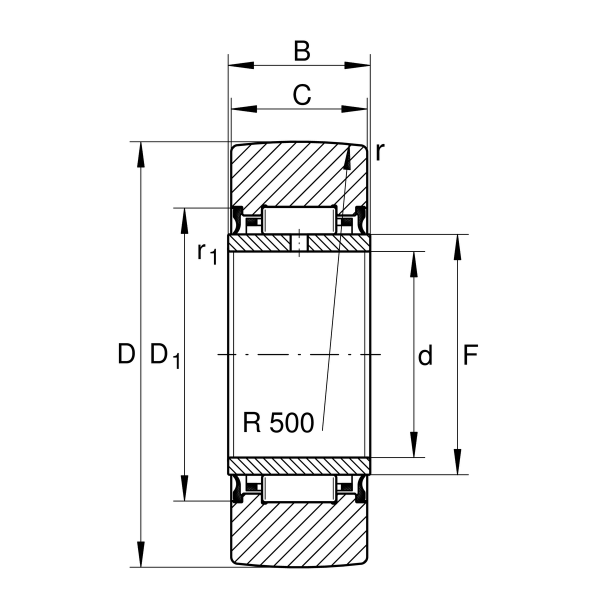

Main Dimensions & Performance Data
D
80 mm
Outside diameter
F
48 mm
Raceway diameter inner ring
C
22.7 mm
Width, outer ring
Cr w
26,000 N
Basic dynamic load rating, radial
C0r w
41,500 N
Basic static load rating, radial
Cur w
5,400 N
Fatigue load limit, radial
nD G
850 1/min
Speed on permanent grease lubrication
≈m
0.486 kg
Weight
