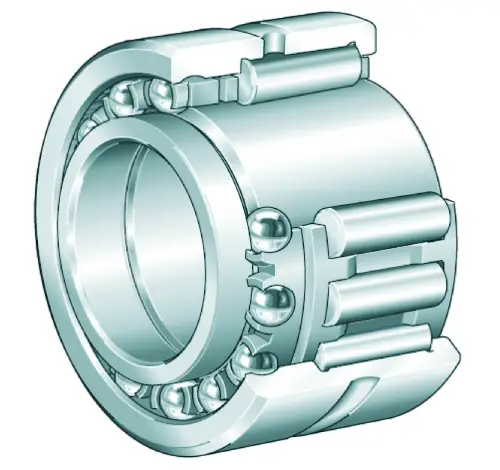

INA NKIA5913-XL
Needle Roller/Angular Contact Ball Bearings
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
65 mm
Bore diameter
D
90 mm
Outside diameter
B
34 mm
Width
Cr
69,000 N
Basic dynamic load rating, radial
C0r
112,000 N
Basic static load rating, radial
Ca
12,800 N
Basic dynamic load rating, axial
C0a
34,000 N
Basic static load rating, axial
Cur
19,900 N
Fatigue limit load, radial
Cur
19,900 N
Fatigue load limit, radial
Cua
1,560 N
Fatigue load limit, axial
nG
6,300 1/min
Limiting speed
nϑr
5,500 1/min
Reference speed
≈m
0.624 kg
Weight
