INA NKIB5909-XL
Needle Roller/Angular Contact Ball Bearings
Needle roller/angular contact ball bearings NKIB, double direction axial component
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

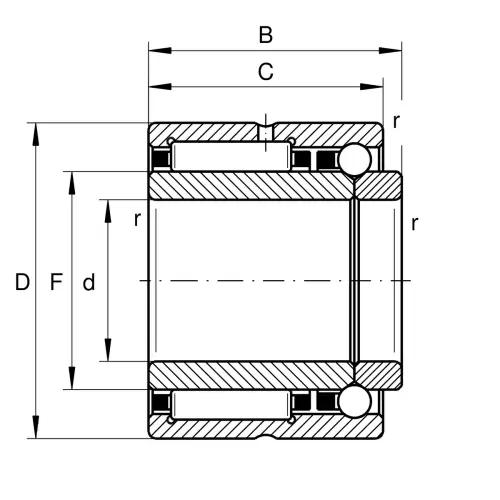

Main Dimensions & Performance Data
d
45 mm
Bore diameter
D
68 mm
Outside diameter
B
34 mm
Width
Cr
51,000 N
Basic dynamic load rating, radial
C0r
73,000 N
Basic static load rating, radial
Ca
9,600 N
Basic dynamic load rating, axial
C0a
21,400 N
Basic static load rating, axial
Cur
12,900 N
Fatigue load limit, radial
Cua
970 N
Fatigue load limit, axial
nG
8,700 1/min
Limiting speed
nϑr
7,000 1/min
Reference speed
≈m
391.8 g
Weight
