INA NKIA5914-XL

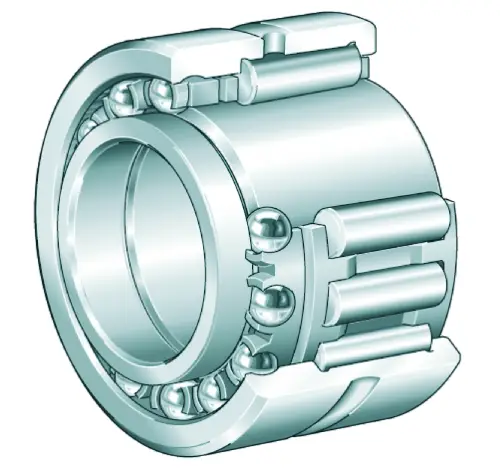

Needle Roller/Angular Contact Ball Bearings
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

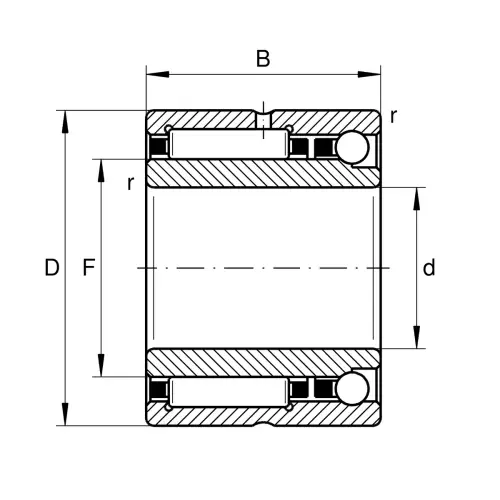

Main Dimensions & Performance Data
d
70 mm
Bore diameter
D
100 mm
Outside diameter
B
40 mm
Width
Cr
95,000 N
Basic dynamic load rating, radial
C0r
156,000 N
Basic static load rating, radial
Ca
16,800 N
Basic dynamic load rating, axial
C0a
44,500 N
Basic static load rating, axial
Cur
28,000 N
Fatigue limit load, radial
Cur
28,000 N
Fatigue load limit, radial
Cua
2,020 N
Fatigue load limit, axial
nG
5,800 1/min
Limiting speed
nϑr
4,900 1/min
Reference speed
≈m
968.13 g
Weight
