INA PWTR3072-2RS-RR-XL
Yoke Type Track Rollers
Yoke type track rollers PWTR..-2RS, full complement cylindrical roller set, with axial guidance, lip seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

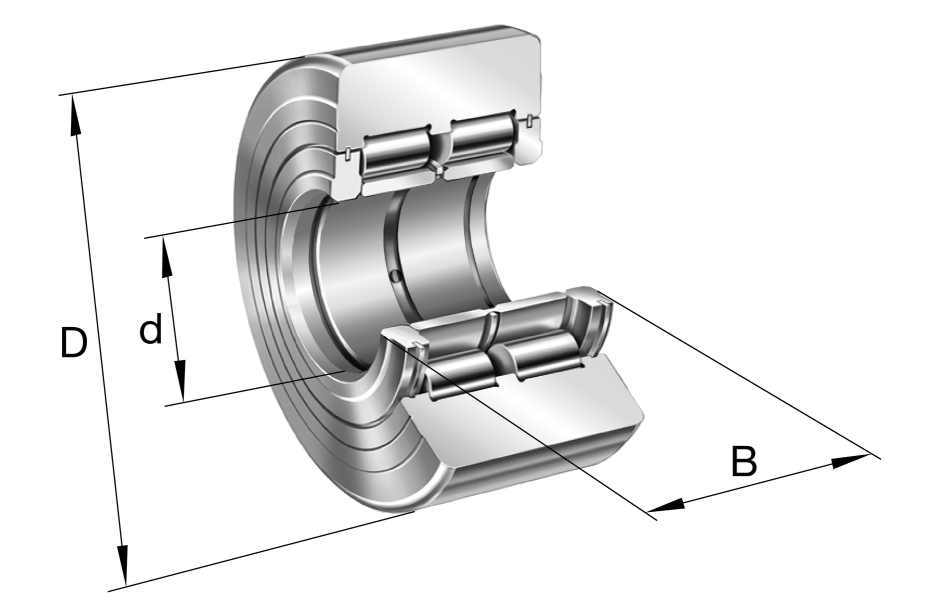

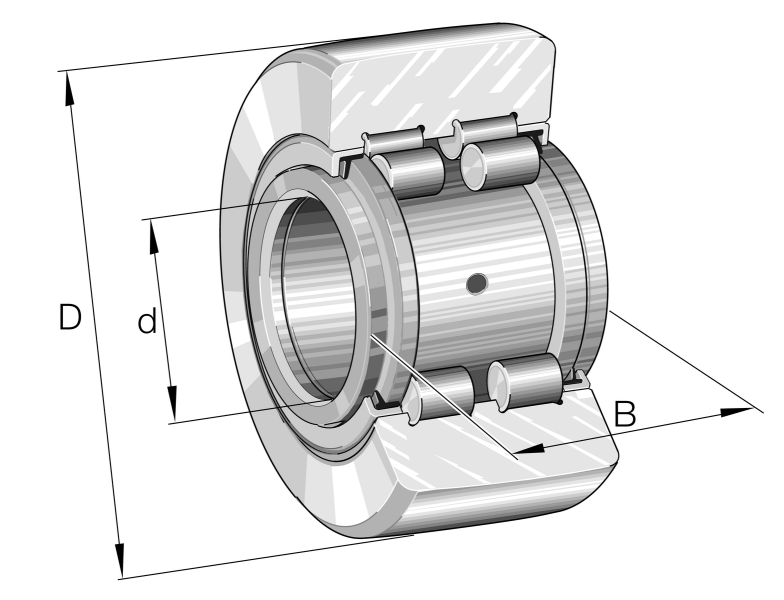

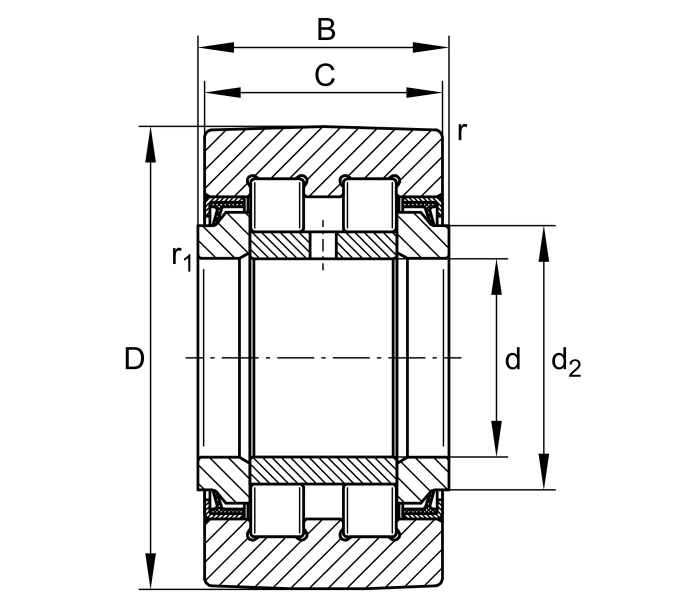

Main Dimensions & Performance Data
d
30 mm
Bore diameter
D
72 mm
Outside diameter
B
29 mm
Width, inner ring
Cr w
41,000 N
Basic dynamic load rating, radial
C0r w
56,000 N
Basic static load rating, radial
Cur w
7,400 N
Fatigue load limit, radial
nD G
2,200 1/min
Speed on permanent grease lubrication
F0r per
56,000 N
Permissible static load, radial
Fr per
53,000 N
Permissible dynamic load outer ring, radial
≈m
0.68 kg
Weight
