INA RSTO8-TV
Yoke Type Track Rollers
Yoke type track rollers RSTO, without axial guidance, outer ring without ribs
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

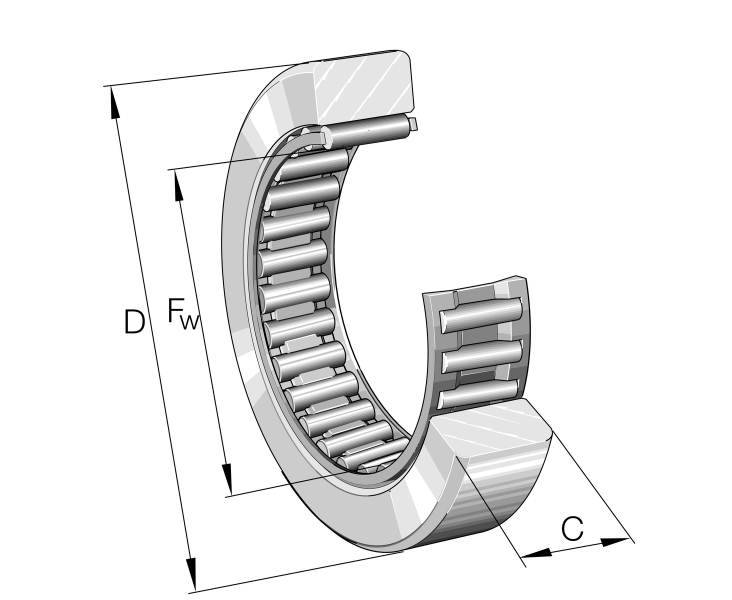

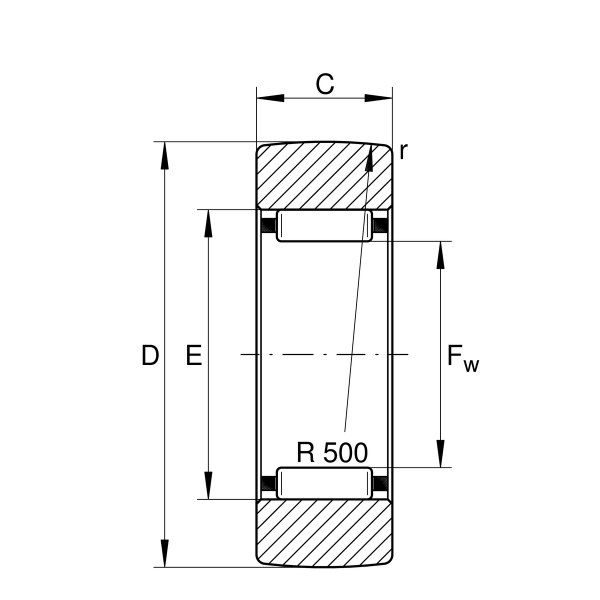

Main Dimensions & Performance Data
D
24 mm
Outside diameter
Fw
12 mm
Under roller diameter
C
9.8 mm
Width, outer ring
Cr w
4,200 N
Basic dynamic load rating, radial
C0r w
5,600 N
Basic static load rating, radial
Cur w
800 N
Fatigue load limit, radial
nD G
8,000 1/min
Speed on permanent grease lubrication
≈m
23 g
Weight
