INA STO50
Yoke Type Track Rollers
Yoke type track rollers STO, without axial guidance, outer ring without ribs
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

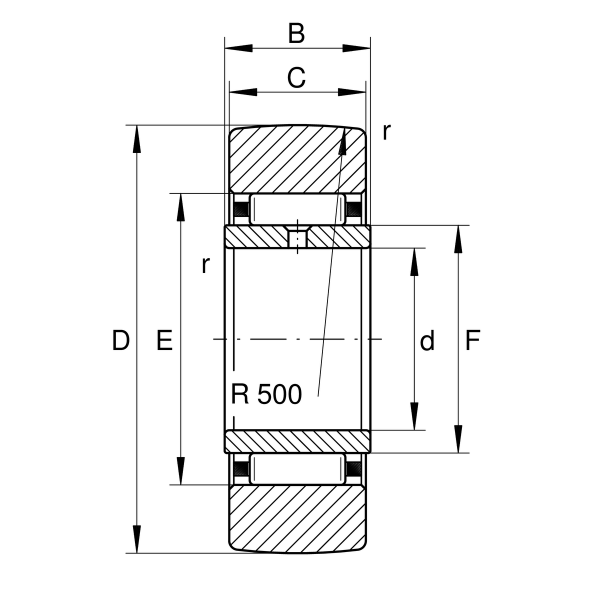

Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
90 mm
Outside diameter
C
19.8 mm
Width, outer ring
Cr w
26,000 N
Basic dynamic load rating, radial
C0r w
47,000 N
Basic static load rating, radial
Cur w
6,400 N
Fatigue load limit, radial
nD G
650 1/min
Speed on permanent grease lubrication
≈m
0.616 kg
Weight
