INA ZL5201-DRS
Stud Type Track Rollers
Stud type track rollers ZL52..-DRS, double row, lip seal on one side
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

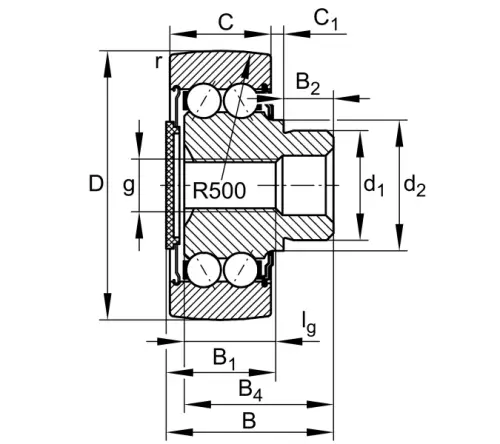

Main Dimensions & Performance Data
D
35 mm
Outside diameter
d1
14 mm
Fit diameter of roller stud / stud
B
33.2 mm
Width
Cr w
8,700 N
Basic dynamic load rating, radial
C0r w
5,400 N
Basic static load rating, radial
Cur w
270 N
Fatigue load limit, radial
nD G
7,500 1/min
Speed on permanent grease lubrication
≈m
0.09 kg
Weight
