INA ZLE5201-2Z
Stud Type Track Rollers
Stud type track roller with eccentric collar ZLE52..-2Z, double row, long roller stud with external thread, sealing shield on both sides, outside surface profile of the outer ring: crowned
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

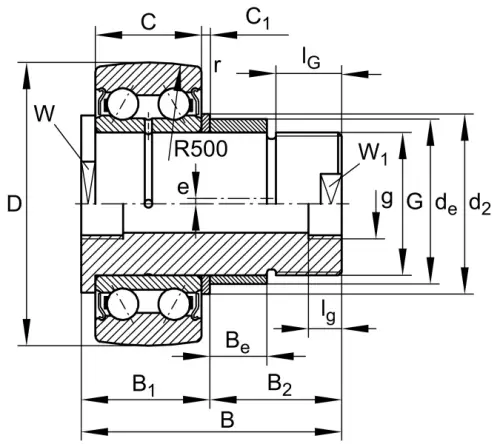

Main Dimensions & Performance Data
D
35 mm
Outside diameter
de
18 mm
Diameter of eccentric
B
65.5 mm
Width
Cr w
7,900 N
Basic dynamic load rating, radial
C0r w
5,300 N
Basic static load rating, radial
Cur w
270 N
Fatigue load limit, radial
nD G
11,100 1/min
Speed on permanent grease lubrication
Fr per
4,800 N
Permissible dynamic load outer ring, radial
≈m
0.145 kg
Weight
