INA ZLE5202-2Z
Stud Type Track Rollers

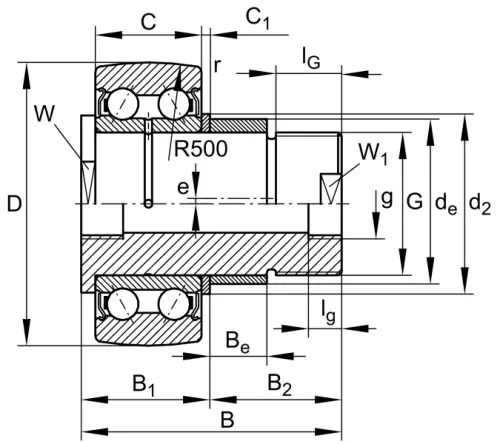

Stud type track roller with eccentric collar ZLE52..-2Z, double row, long roller stud with external thread, sealing shield on both sides, outside surface profile of the outer ring: crowned
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
D
40 mm
Outside diameter
de
22 mm
Diameter of eccentric
B
66.5 mm
Width
Cr w
9,800 N
Basic dynamic load rating, radial
C0r w
7,000 N
Basic static load rating, radial
Cur w
355 N
Fatigue load limit, radial
nD G
10,200 1/min
Speed on permanent grease lubrication
Fr per
7,000 N
Permissible dynamic load outer ring, radial
≈m
230 g
Weight
