INA ZM100
Precision Lock nut
Precision locknut ZM, accessory ZM..
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

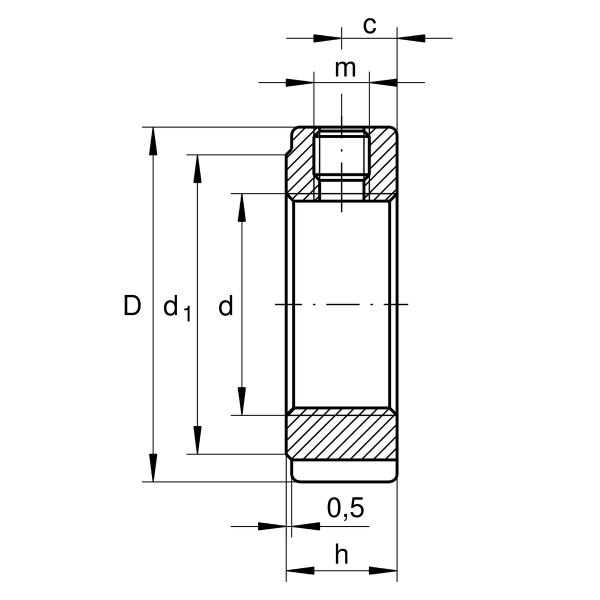

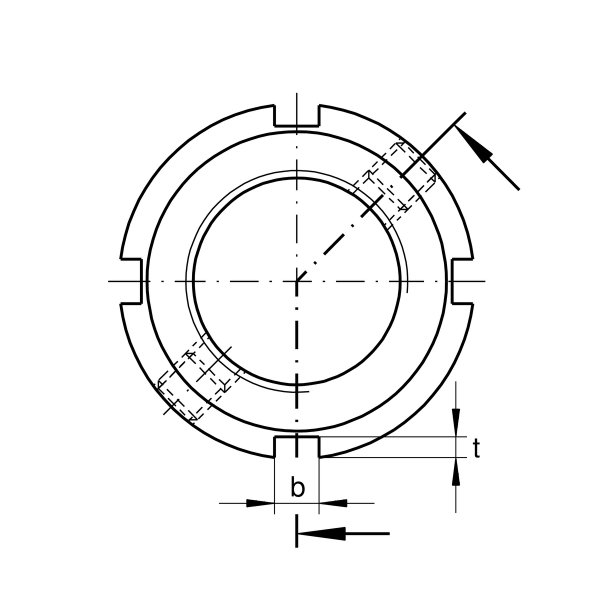

Main Dimensions & Performance Data
d
M100X2
Thread
D
130 mm
Outside diameter
h
20 mm
Height
MA
15 Nm
Mounting torque set screw
FaB
465,000 N
Breaking load, axial
ML
425 Nm
Breakawag
MAL
250 Nm
Mounting torque reference
MM
28.6 kg*cm2
Mass moment of inertia
≈m
0.83 kg
Weight
