Koyo 29240
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

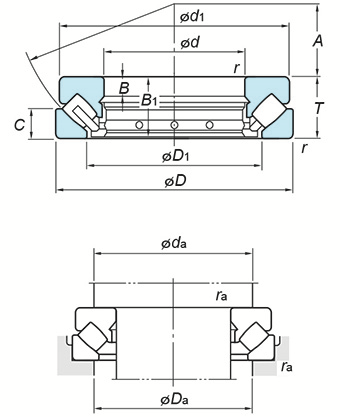

(Boundary dimensions ...etc)
d
200 mm
D
280 mm
T
48 mm
r(min.)
2 mm
Basic load ratings Ca
641 kN
Basic load ratings C0a
2170 kN
Fatigue load limit : Cu
151 kN
Limiting speeds(Oil lub.)
1600 min-1
d1
271 mm
D1
236 mm
B
15 mm
B1
45 mm
C
24 mm
A
108 mm
Mounting dimensions
da(min.)
235 mm
Da(max.)
255 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
8.90 kg
