Koyo 29252
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

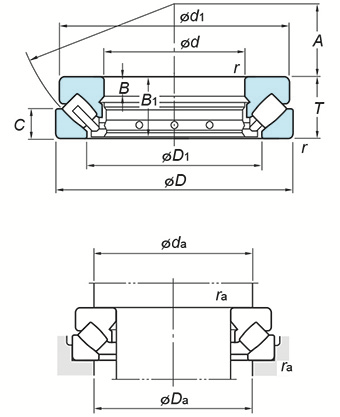

Specifications
(Boundary dimensions ...etc)
d
260 mm
D
360 mm
T
60 mm
r(min.)
2.1 mm
Basic load ratings Ca
1050 kN
Basic load ratings C0a
3720 kN
Fatigue load limit : Cu
240 kN
Limiting speeds(Oil lub.)
1200 min-1
d1
350 mm
D1
302 mm
B
19 mm
B1
57 mm
C
30 mm
A
139 mm
Mounting dimensions
da(min.)
305 mm
Da(max.)
325 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
18.5 kg
