Koyo 29317R
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

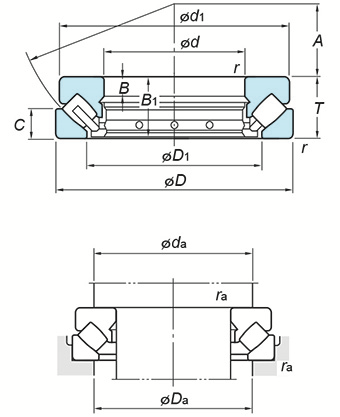

(Boundary dimensions ...etc)
d
85 mm
D
150 mm
T
39 mm
r(min.)
1.5 mm
Basic load ratings Ca
400 kN
Basic load ratings C0a
1000 kN
Fatigue load limit : Cu
100 kN
Limiting speeds(Oil lub.)
2600 min-1
d1
143.5 mm
D1
114 mm
B
13 mm
B1
37 mm
C
19 mm
A
50 mm
Mounting dimensions
da(min.)
115 mm
Da(max.)
135 mm
ra(max.)
1.5 mm
Refer.
(Refer.)Mass
2.87 kg
