Koyo 29322R
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

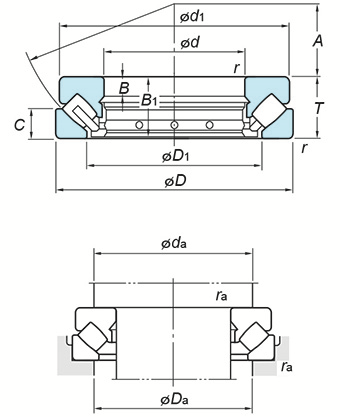

(Boundary dimensions ...etc)
d
110 mm
D
190 mm
T
48 mm
r(min.)
2 mm
Basic load ratings Ca
628 kN
Basic load ratings C0a
1690 kN
Fatigue load limit : Cu
147 kN
Limiting speeds(Oil lub.)
2000 min-1
d1
182 mm
D1
143 mm
B
16 mm
B1
45.5 mm
C
23 mm
A
64 mm
Mounting dimensions
da(min.)
145 mm
Da(max.)
165 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
5.67 kg
