Koyo 29324R
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

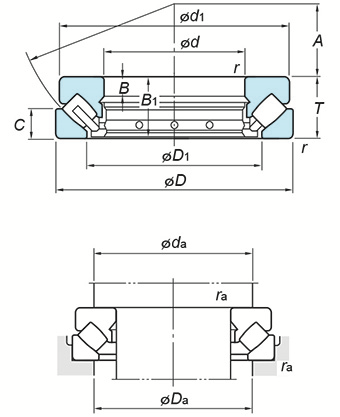

(Boundary dimensions ...etc)
d
120 mm
D
210 mm
T
54 mm
r(min.)
2.1 mm
Basic load ratings Ca
759 kN
Basic load ratings C0a
2030 kN
Fatigue load limit : Cu
182 kN
Limiting speeds(Oil lub.)
1800 min-1
d1
200 mm
D1
159 mm
B
18 mm
B1
51 mm
C
26 mm
A
70 mm
Mounting dimensions
da(min.)
160 mm
Da(max.)
180 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
7.90 kg
