Koyo 29326R
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

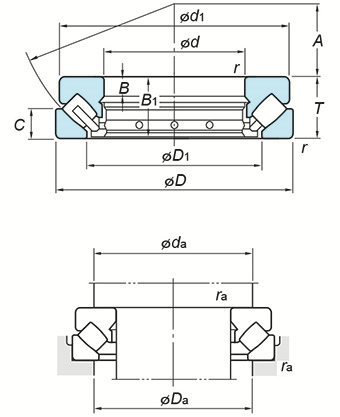

(Boundary dimensions ...etc)
d
130 mm
D
225 mm
T
58 mm
r(min.)
2.1 mm
Basic load ratings Ca
894 kN
Basic load ratings C0a
2440 kN
Fatigue load limit : Cu
209 kN
Limiting speeds(Oil lub.)
1700 min-1
d1
215 mm
D1
171 mm
B
19 mm
B1
55 mm
C
28 mm
A
76 mm
Mounting dimensions
da(min.)
170 mm
Da(max.)
195 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
9.45 kg
