Koyo 29344R
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

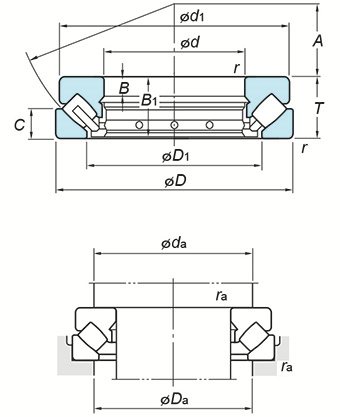

(Boundary dimensions ...etc)
d
220 mm
D
360 mm
T
85 mm
r(min.)
4 mm
Basic load ratings Ca
1840 kN
Basic load ratings C0a
5240 kN
Fatigue load limit : Cu
439 kN
Limiting speeds(Oil lub.)
1000 min-1
d1
345 mm
D1
280 mm
B
29 mm
B1
81 mm
C
41 mm
A
125 mm
Mounting dimensions
da(min.)
285 mm
Da(max.)
315 mm
ra(max.)
3 mm
Refer.
(Refer.)Mass
33.3 kg
