Koyo 29376R
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

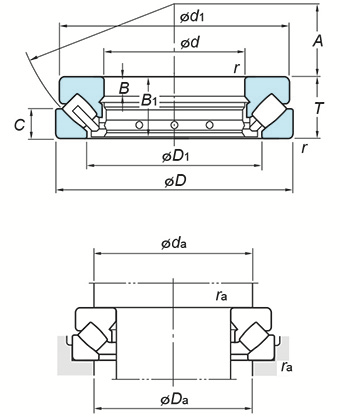

(Boundary dimensions ...etc)
d
380 mm
D
600 mm
T
132 mm
r(min.)
6 mm
Basic load ratings Ca
4430 kN
Basic load ratings C0a
15000 kN
Fatigue load limit : Cu
1030 kN
Limiting speeds(Oil lub.)
500 min-1
d1
580 mm
D1
477 mm
B
44 mm
B1
127 mm
C
63 mm
A
216 mm
Mounting dimensions
da(min.)
480 mm
Da(max.)
525 mm
ra(max.)
5 mm
Refer.
(Refer.)Mass
141 kg
