Koyo 29412R
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

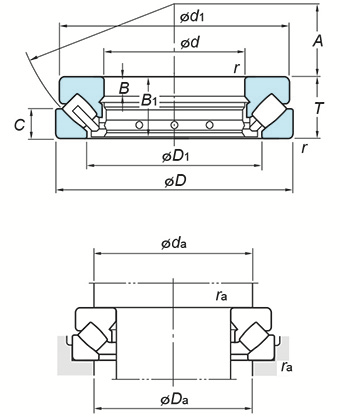

(Boundary dimensions ...etc)
d
60 mm
D
130 mm
T
42 mm
r(min.)
1.5 mm
Basic load ratings Ca
399 kN
Basic load ratings C0a
884 kN
Fatigue load limit : Cu
73.7 kN
Limiting speeds(Oil lub.)
2700 min-1
d1
123 mm
D1
89 mm
B
15 mm
B1
39.5 mm
C
20 mm
A
38 mm
Mounting dimensions
da(min.)
90 mm
Da(max.)
108 mm
ra(max.)
1.5 mm
Refer.
(Refer.)Mass
2.75 kg
