Koyo 29413R
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

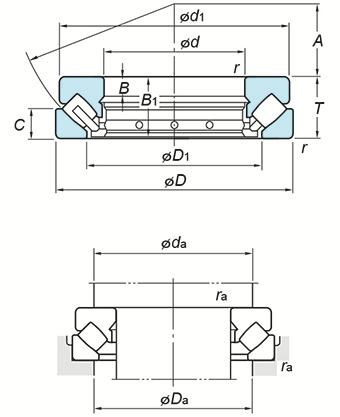

(Boundary dimensions ...etc)
d
65 mm
D
140 mm
T
45 mm
r(min.)
2 mm
Basic load ratings Ca
450 kN
Basic load ratings C0a
1020 kN
Fatigue load limit : Cu
73.4 kN
Limiting speeds(Oil lub.)
2500 min-1
d1
133 mm
D1
96 mm
B
16 mm
B1
42.5 mm
C
21 mm
A
42 mm
Mounting dimensions
da(min.)
100 mm
Da(max.)
115 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
3.41 kg
