Koyo 29415R
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

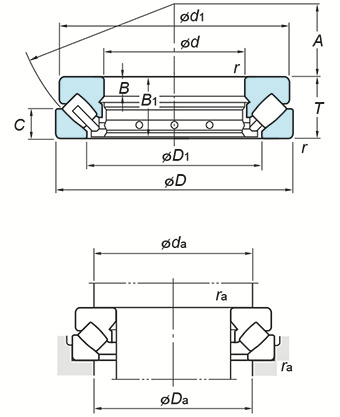

(Boundary dimensions ...etc)
d
75 mm
D
160 mm
T
51 mm
r(min.)
2 mm
Basic load ratings Ca
584 kN
Basic load ratings C0a
1360 kN
Fatigue load limit : Cu
102 kN
Limiting speeds(Oil lub.)
2100 min-1
d1
152 mm
D1
109 mm
B
18 mm
B1
48 mm
C
24 mm
A
47 mm
Mounting dimensions
da(min.)
115 mm
Da(max.)
132 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
4.98 kg
