Koyo 29417R
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

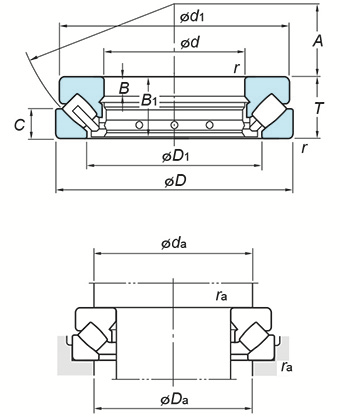

(Boundary dimensions ...etc)
d
85 mm
D
180 mm
T
58 mm
r(min.)
2.1 mm
Basic load ratings Ca
714 kN
Basic load ratings C0a
1700 kN
Fatigue load limit : Cu
124 kN
Limiting speeds(Oil lub.)
1900 min-1
d1
170 mm
D1
125 mm
B
21 mm
B1
55 mm
C
28 mm
A
54 mm
Mounting dimensions
da(min.)
130 mm
Da(max.)
150 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
7.19 kg
