Koyo 29418R
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

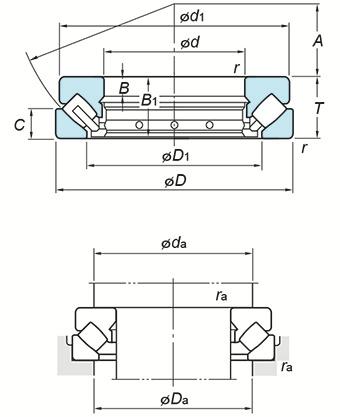

(Boundary dimensions ...etc)
d
90 mm
D
190 mm
T
60 mm
r(min.)
2.1 mm
Basic load ratings Ca
821 kN
Basic load ratings C0a
2010 kN
Fatigue load limit : Cu
158 kN
Limiting speeds(Oil lub.)
1800 min-1
d1
180 mm
D1
132 mm
B
22 mm
B1
57 mm
C
29 mm
A
56 mm
Mounting dimensions
da(min.)
135 mm
Da(max.)
157 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
8.28 kg
