Koyo 29422R
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

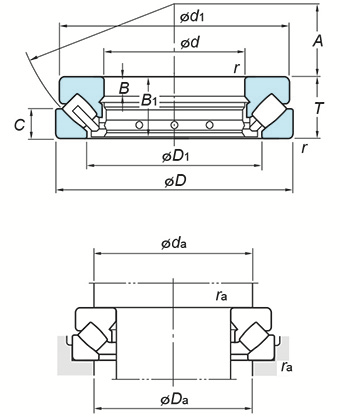

Specifications
(Boundary dimensions ...etc)
d
110 mm
D
230 mm
T
73 mm
r(min.)
3 mm
Basic load ratings Ca
1120 kN
Basic load ratings C0a
2810 kN
Fatigue load limit : Cu
203 kN
Limiting speeds(Oil lub.)
1500 min-1
d1
220 mm
D1
162 mm
B
26 mm
B1
69 mm
C
35 mm
A
69 mm
Mounting dimensions
da(min.)
165 mm
Da(max.)
190 mm
ra(max.)
2.5 mm
Refer.
(Refer.)Mass
14.7 kg
