Koyo 29424R
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

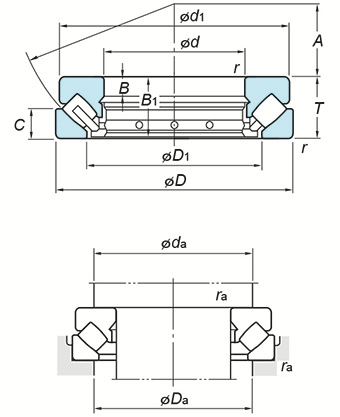

Specifications
(Boundary dimensions ...etc)
d
120 mm
D
250 mm
T
78 mm
r(min.)
4 mm
Basic load ratings Ca
1300 kN
Basic load ratings C0a
3270 kN
Fatigue load limit : Cu
241 kN
Limiting speeds(Oil lub.)
1350 min-1
d1
236 mm
D1
174 mm
B
29 mm
B1
74 mm
C
37 mm
A
74 mm
Mounting dimensions
da(min.)
180 mm
Da(max.)
205 mm
ra(max.)
3 mm
Refer.
(Refer.)Mass
18.5 kg
