Koyo 29428R
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

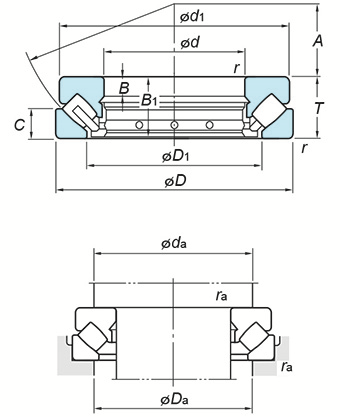

(Boundary dimensions ...etc)
d
140 mm
D
280 mm
T
85 mm
r(min.)
4 mm
Basic load ratings Ca
1560 kN
Basic load ratings C0a
4080 kN
Fatigue load limit : Cu
289 kN
Limiting speeds(Oil lub.)
1250 min-1
d1
268 mm
D1
199 mm
B
31 mm
B1
81 mm
C
41 mm
A
86 mm
Mounting dimensions
da(min.)
205 mm
Da(max.)
235 mm
ra(max.)
3 mm
Refer.
(Refer.)Mass
24.6 kg
