Koyo 29434R
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

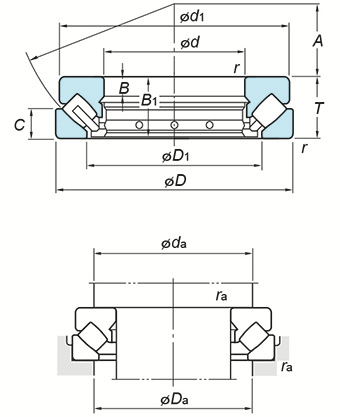

Specifications
(Boundary dimensions ...etc)
d
170 mm
D
340 mm
T
103 mm
r(min.)
5 mm
Basic load ratings Ca
2120 kN
Basic load ratings C0a
5880 kN
Fatigue load limit : Cu
389 kN
Limiting speeds(Oil lub.)
950 min-1
d1
324 mm
D1
243 mm
B
37 mm
B1
99 mm
C
50 mm
A
104 mm
Mounting dimensions
da(min.)
245 mm
Da(max.)
285 mm
ra(max.)
4 mm
Refer.
(Refer.)Mass
44.0 kg
