Koyo 29460R
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

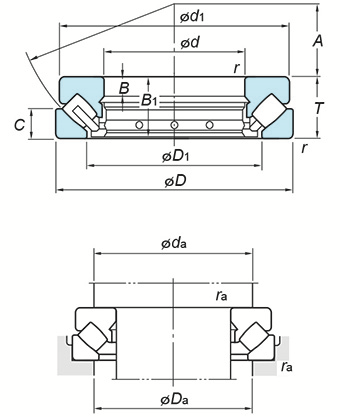

(Boundary dimensions ...etc)
d
300 mm
D
540 mm
T
145 mm
r(min.)
6 mm
Basic load ratings Ca
4670 kN
Basic load ratings C0a
14900 kN
Fatigue load limit : Cu
925 kN
Limiting speeds(Oil lub.)
550 min-1
d1
515 mm
D1
402 mm
B
52 mm
B1
140 mm
C
70 mm
A
175 mm
Mounting dimensions
da(min.)
410 mm
Da(max.)
460 mm
ra(max.)
5 mm
Refer.
(Refer.)Mass
146 kg
