Koyo 29472R
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

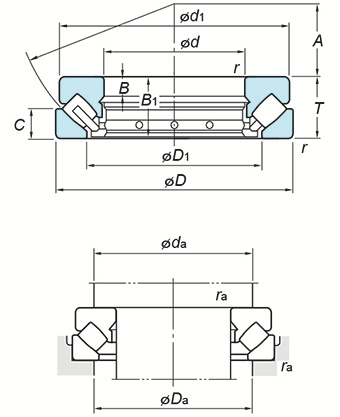

(Boundary dimensions ...etc)
d
360 mm
D
640 mm
T
170 mm
r(min.)
7.5 mm
Basic load ratings Ca
6440 kN
Basic load ratings C0a
20600 kN
Fatigue load limit : Cu
1300 kN
Limiting speeds(Oil lub.)
450 min-1
d1
610 mm
D1
480 mm
B
61 mm
B1
164 mm
C
82 mm
A
210 mm
Mounting dimensions
da(min.)
485 mm
Da(max.)
550 mm
ra(max.)
6 mm
Refer.
(Refer.)Mass
231 kg
