MCGILL CCYR-1 3/8-S
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

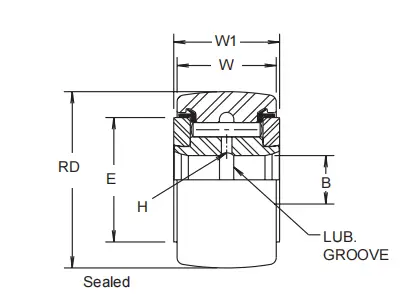

Description
ROLLER DIA.(RD)
1.375
ROLLER WIDTH (W)
.750
BORE (B)NOM.
.375
WIDTH OVER END PLATES (W1)
.8125
DIA. OF END PLATES (E)
63/64
MIN. BOSS DIA.
49/64
SHAFT DIA. PUSH FIT
.3745
SHAFT DIA. DRIVE FIT
.3751
SHAFT DIA. PRESS FIT
.3753
MAX. STATIC CAPACITY LBS.
8500
BASIC DYN. RATING LBS.
3930
