MCGILL CCYR-2 3/4-S
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

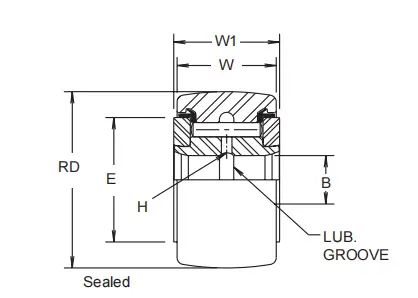

Description
ROLLER DIA.(RD)
2.750
ROLLER WIDTH (W)
1.500
BORE (B)NOM.
.750
WIDTH OVER END PLATES (W1)
1.5625
DIA. OF END PLATES (E)
1 11/16
MIN. BOSS DIA.
1 5/16
SHAFT DIA. PUSH FIT
.7495
SHAFT DIA. DRIVE FIT
.7501
SHAFT DIA. PRESS FIT
.7505
MAX. STATIC CAPACITY LBS.
32900
BASIC DYN. RATING LBS.
11720
