MCGILL CCYR-9-S
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

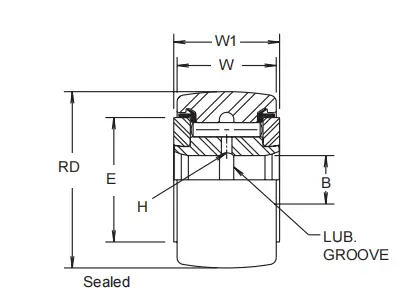

Description
ROLLER DIA.(RD)
9.000
ROLLER WIDTH (W)
4.750
BORE (B)NOM.
3.755
WIDTH OVER END PLATES (W1)
5.000
DIA. OF END PLATES (E)
5 1/16
MIN. BOSS DIA.
5 1/16
SHAFT DIA. PUSH FIT
3.7545
SHAFT DIA. DRIVE FIT
3.7560
SHAFT DIA. PRESS FIT
3.7565
MAX. STATIC CAPACITY LBS.
366850
BASIC DYN. RATING LBS.
113260
