MCGILL CFH-1-SB
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

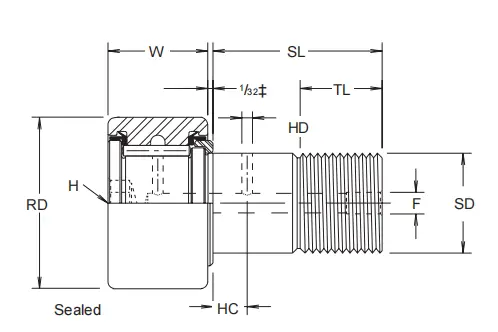

ROLLER DIA.(RD)
1.000
ROLLER WIDTH (W)
.625
STUD DIA. (SD)
.625
STUD L'GTH.(SL)
1
MIN. THR'D L'GTH.(TL)
1/2
FINE THR'DS.
5/8-18
HOLE CENTER(HC)
1/4
HOLE DIA.(HD)
3/32
LUB. FIT- TING SIZE (F)*
3/16
MIN. BOSS DIA.
25/32
HOUSING BORE DIA.
.6253
***RECOM. CLAMPING TORQUE LBS.-IN.
95
MAX. STATIC CAPACITY LBS.
6120
BASIC DYN. RATING LBS.
2225
